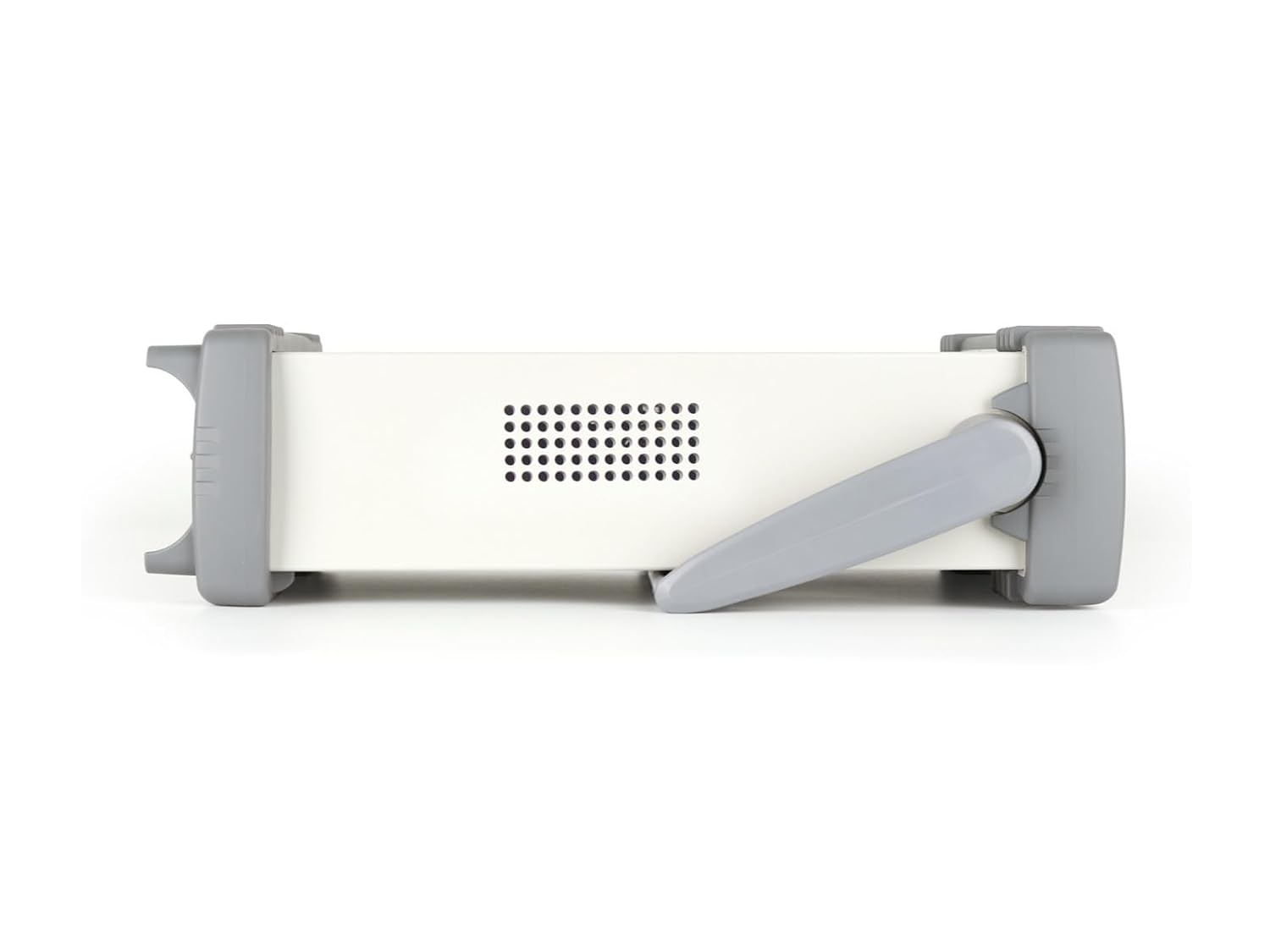

Digital LCR Meter, Capacitance Inductance Resistance Tester (50Hz-100kHz) with 0.05% Accuracy

Specifications Model: TH2830 Display: 4.3 TFT LCD Display 480×272 Basic accuracy: LCRZ: 0.05%; DCR: 0.10% Test frequency: 50Hz-100kHz, Continuous AC Singal: 10mVrms - 2Vrms; 100μArms - 20mArms Output impedance: 30Ω, 100Ω RDC Signal level: 1V Test Speed (ms): Fast: 12.5ms; Middle: 83 ms; Slow: 167 ms List Sweep: 201 Dots. Parameter: Frequency, AC Voltage, AC Current, DC BIAS Voltage, DC BIAS Current Test Result Display: Measurement display 1: test status and results; measurement display 2: sorting status and results General Function: Series, parallel equivalent mode, test cable length: 0, 1m, average: 1-255 times, calibration: open circuit, short circuit, load, ALC function(only TH2832) Range selection: automatic, manual, trigger mode: INT, MAN, EXT, BUS, trigger delay: 0-999s, keyboard lock function Special function: L-RDC simultaneous test, soft power switch, one-key screenshot function, data recording function Comparator function: 10 bins, BIN1–BIN9, NG, AUX; Bin count function; PASS, FAIL LED display on front panel Storage: Internal: 100 LCRZ instrument setting files, 201 times test results USB External: Instrument setting files , measurement result CSV files, printed screen (GIF format) Accessories Fixture Short circuit Kelvin test lead with box four-terminal insulation and lock

• Cost-Effective, High-Performance: The LCR Meter is low-cost, high-performance, and compact
• Advanced Display & Features: Features a 4.3-inch TFT LCD, soft power switch, and multi-language support
• Precise Testing: Supports up to 100kHz test frequency, 6-digit resolution, and DCR testing
• Enhanced Connectivity: Includes V/I monitor, auto level adjustment, and file storage via U disk
• Versatile Interfaces: Offers RS232, RS485, USB, HANDLER, and GPIB interfaces for easy integration
