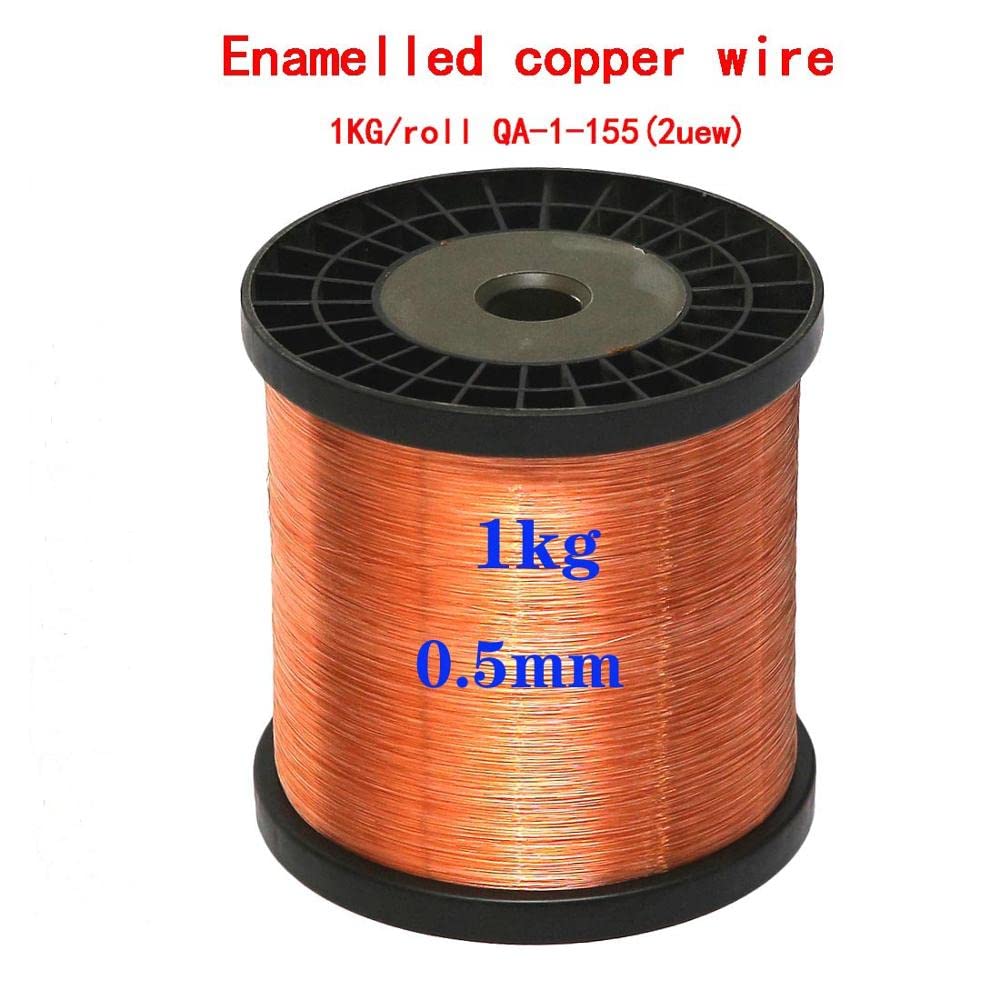

1kg/Roll 0.06 0.1 0.2 0.25 0.5 1.0 1.3 1.5mm Copper Wire Magnet Wire Enameled Copper Winding Wire Coil Winding Wire Weight 1kg (Color : 0.5mm, Size : Copper)

1.3 mm, 1.4 mm, 1.5 mm, the diameter of the three specifications of copper wire is relatively thick, and there is no winding shaft. If the winding shaft copper wire is not easy to straighten1000g 0.04 0.05 0.06 0.08 0.1 0.15 0.2 0.25 0.31 1.0 1.2 mm Qa-1-155 Wire Enameled Copper Wire Magnetic Coil Winding High temper 1kgQa-1 is equivalent to 2uew, and its insulating layer is polyurethane, which has good direct weldability at 360 ~ 400 .Main characteristics: it has good direct welding performance, can avoid peeling the film during winding process, and effectively improve the working efficiency; the dielectric loss angle tangent is small, and has good "Q" value characteristics under high frequency;no pinhole in stretching and bending, suitable for high-speed winding; it has good solvent resistance characteristics for solvents and hardeners used in general containing water.Application: widely used in high frequency transformer, inductance coil, relay, motor, electrical instrument coil winding with long-term working temperature below 155 .General knowledge: the diameter indicated in the specification of enameled wire refers to the diameter of bare copper wire. The diameter of enameled wire measured by caliper is the outer diameter (including the thickness of paint).UEW is the representation of Japanese standards. Both Taiwan and South Korean are represented by UEW. QA is the representation of national standards and international standards. The difference between them is that the range of UEW outer diameter is relatively loose, and the others are basically the same. Note: 2uew = qa-1 1uew = Qa-2Q in qa-1 is the series code, the first pinyin letter of paint.A is polyurethane paint, the first pinyin letter of amine.-1 stands for thin film. (- 2 for thick film, - 3 for thick film)Common sense: The diameter referred to in the specifications of the enameled wire refers to the diameter of the

• It has good direct welding performance, can avoid peeling the film during winding process, and effectively improve the working efficiency;
• the dielectric loss angle tangent is small, and has good "Q" value characteristics under high frequency;
• no pinhole in stretching and bending, suitable for high-speed winding;
• it has good solvent resistance characteristics for solvents and hardeners used in general containing water.
